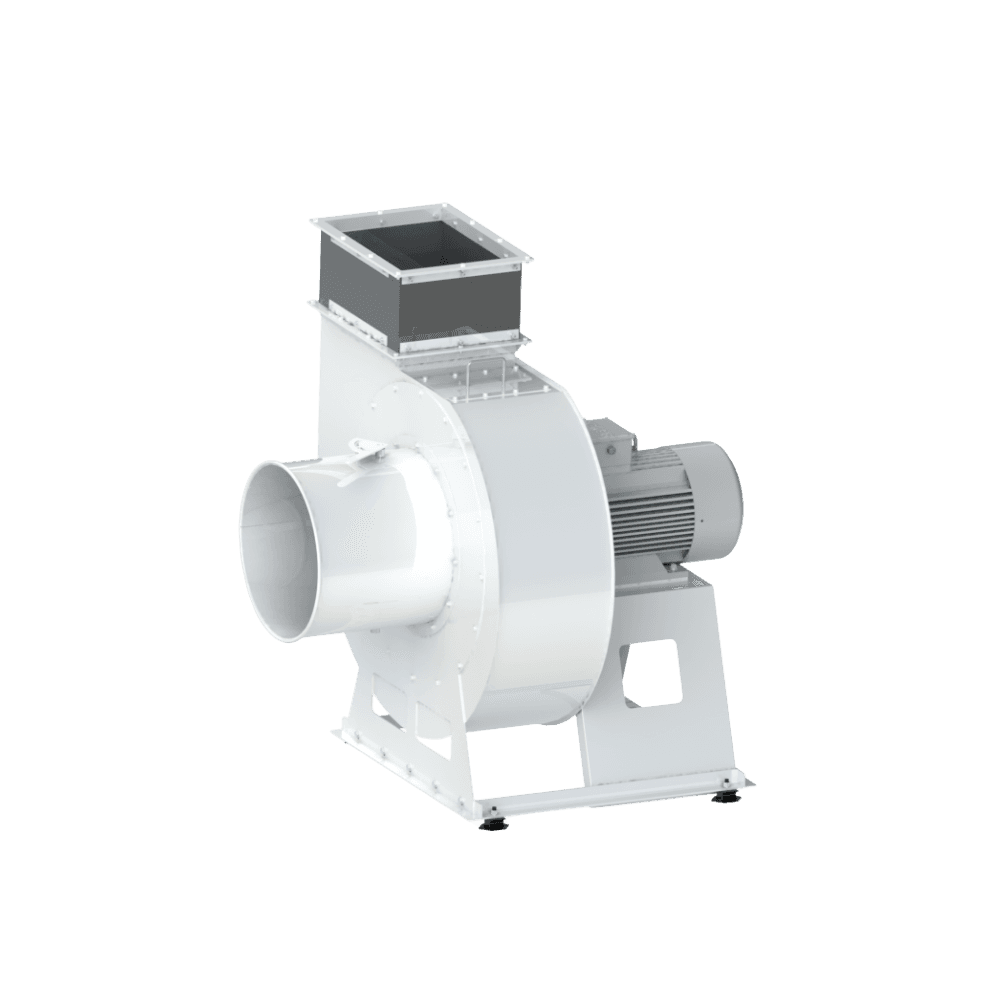

Centrifugal Fan

UTILIZATION

Flourish Engineering & Solutions presents the Centrifugal Fan, designed for air movement, dust particle extraction, and heat discharge in food and grain processing plants.

OPERATION

Air enters through the inlet and is radially accelerated by the impeller, changing airflow direction. The adjustable air valve allows precise control of airflow before discharge.

FEATURES

Adjustable air control valve
Multi-directional installation
Efficient air and humidity management
Robust and reliable design

TECHNICAL DATA

Model No.	CF 75	CF 100	CF 150	CF 200
Air Capacity (CFM)	3800	4200	7500	10500
Motor (HP)	7	10	15	20
Dim.(L × W × H)mm	1265 × 1180 × 1454	1315 × 1375 × 1495	1540 × 1540 × 1650	1540 × 1540 × 1650
Approx. Weight	230 kg	255 kg	310 kg	340 kg
Inlet / Outlet Ø (mm)	450 / 450	500 / 500	550 / 550	550 / 650

NoteCapacity calculated at 750 kg/m³ bulk density. (Material Wheat). Additional models are available in various capacity ranges.
