Atta Chakki

UTILIZATION

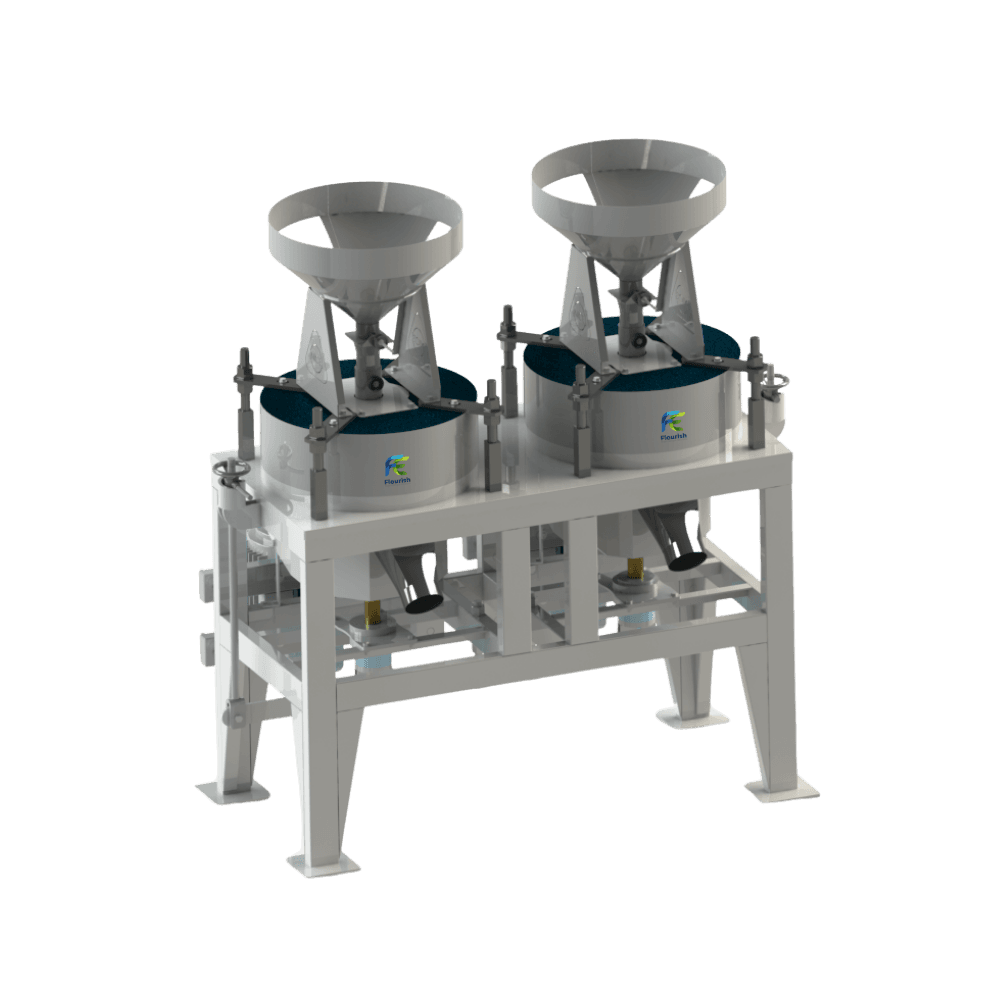

Flourish Engineering & Solutions presents the Twin Atta Chakki, designed for efficient grinding in flour mills, pulse splitting units, and food processing plants. Its sturdy construction ensures consistent output and long-term performance.

OPERATION

Raw material is fed through the inlet hopper, where twin rolling stones grind the grain into fine flour. The grinding speed is controlled through an adjustment knob, and the finished product is discharged smoothly through the outlet.

FEATURES

  • Adjustable feed control knob
  • High grinding capacity
  • Heavy-duty 5B pulleys for strong grip

TECHNICAL DATA

Model No.TAC24TAC30
Capacity (kg/h)250 - 300400 - 500
Motor (HP)1525
Dim. (L×W×H)mm1421×1012×18811521×1112×1881
Approx. Weight1210 kg1490 kg
Stone Size (Inch)24"30"

NoteCapacity calculated at 750 kg/m³ bulk density. (Material Wheat). Additional models are available in various capacity ranges.

Technical Specifications

Capacity250-500 KG/H
Power15-25 HP
Motor Speed1500 RPM
