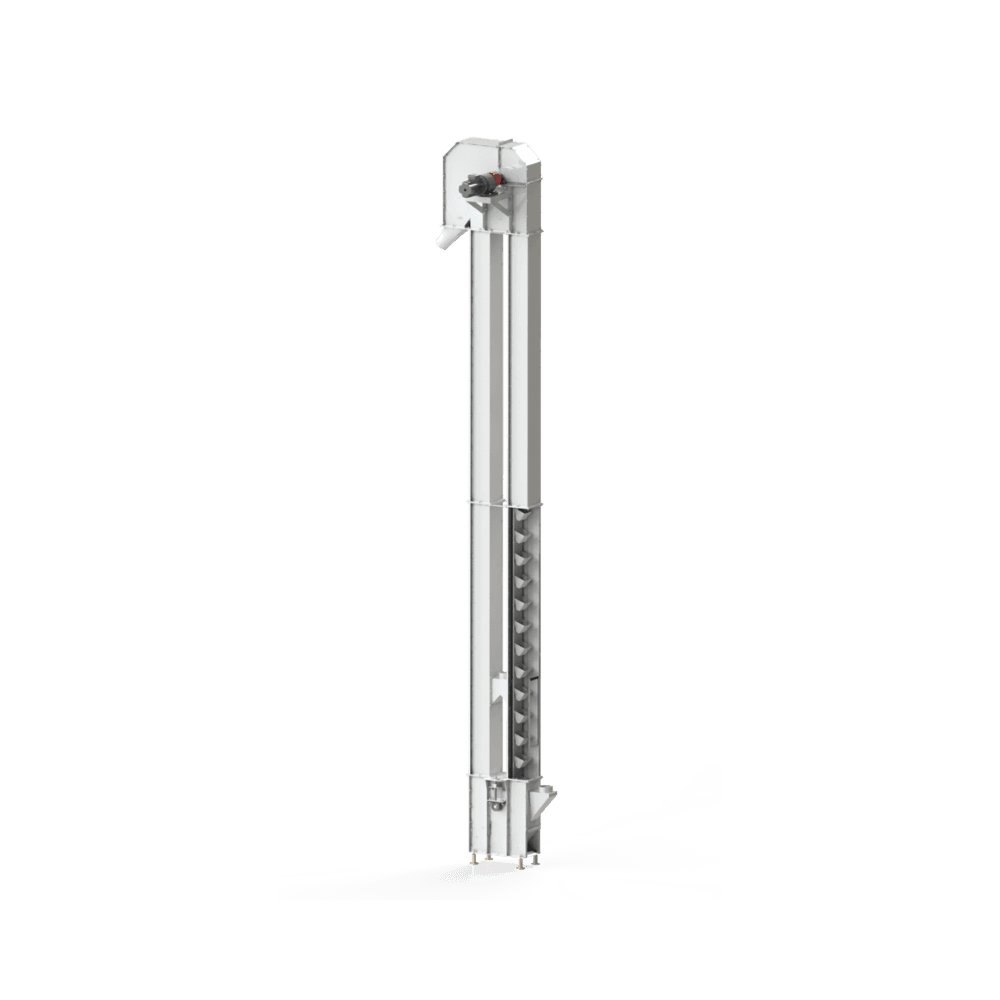

Bucket Elevator

UTILIZATION

Flourish Engineering & Solutions presents the Bucket Elevator, designed for vertical handling and conveying of rice, pulses, grains, spices, lentils, psyllium husk (isabgol), cumin seeds, cereals, oats, beans, and similar materials across processing lines.

OPERATION

The Bucket Elevator consists of bottom intake, trunk, and top discharge sections mounted on a rigid steel frame. Buckets are fixed to a belt and run over top and bottom crowned pulleys, driven by a fully enclosed gear motor to ensure smooth and continuous vertical conveying.

FEATURES

High-quality self-lubricated bearings
Non-magnetic fibre buckets
Smooth, continuous operation

TECHNICAL DATA

Model No.	BE 200S	LE 250S	BE 300S	LE 200H	BE 250H	LE 300H
Type	Slow Speed	Slow Speed	Slow Speed	High Speed	High Speed	High Speed
Capacity (T/H)	8	20	30	20	50	80
Bucket Size (mm)	160x140x100	200x140x100	280x140x100	160x140x100	230x170x100	280x170x100
Belt Width (mm)	160	200	290	150	100	300
Belt Speed (m/s)	1.25	1.5	1.6	1.5	3	3

NoteCapacity calculated at 750 kg/m³ bulk density. (Material Wheat). Additional models are available in various capacity ranges.

Technical Specifications

Capacity8-80 TPH
