Cyclone Separator

UTILIZATION

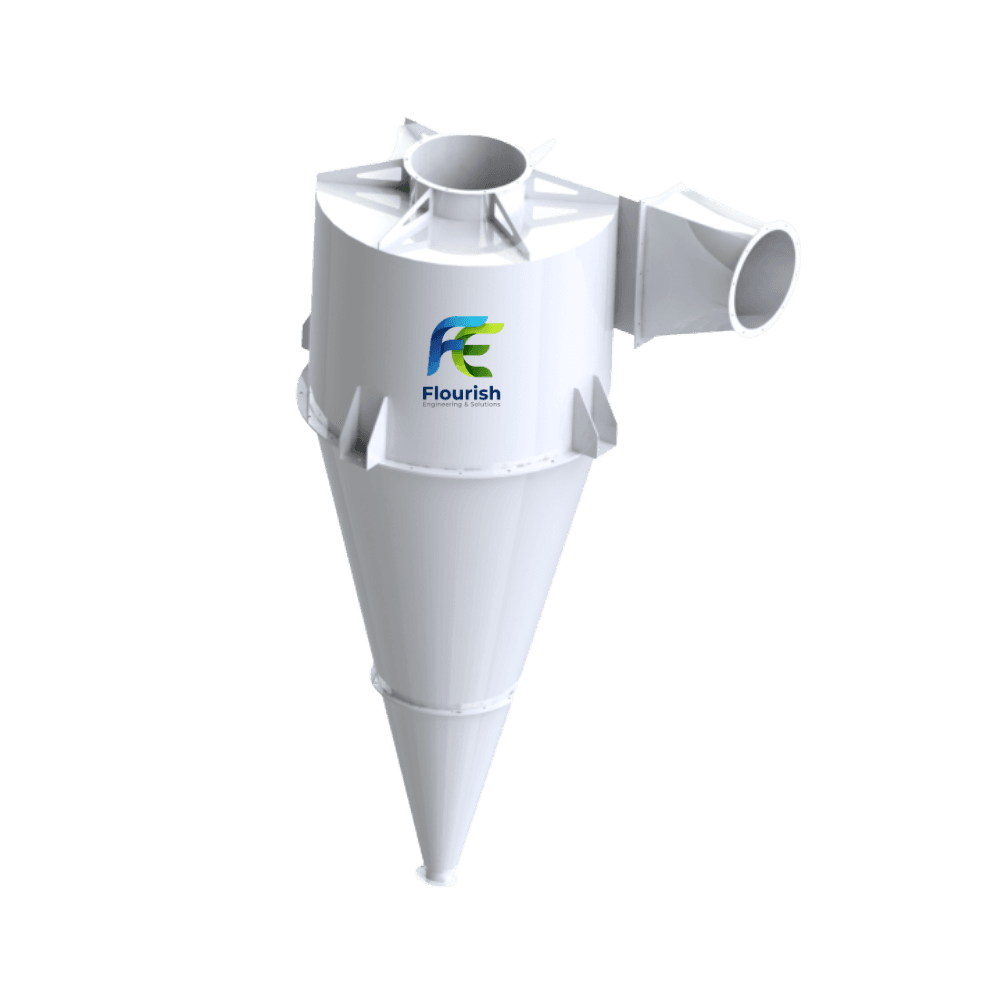

Flourish Engineering & Solutions presents the Cyclone Separator, designed to remove high-volume dust and light impurities from grains, pulses, and rice using centrifugal force. It improves air cleanliness and product quality in processing plants.

OPERATION

A blower mounted on top creates suction, drawing dusty air into the cyclone. Centrifugal force separates heavy particles, which fall downward, while clean air exits through the outlet.

FEATURES

Robust and well-built design
Fast and efficient dust separation
Fully automated operation

TECHNICAL DATA

Model No.	CYC 130	CYC 150	CYC 175
Air Capacity (CFM)	6000	8000	10000
Discharge Ø (mm)	150	150-200	200
Inlet / Outlet Ø (mm)	500 / 550	550 / 600	600 / 650
Dimensions Ø × H (mm)	1300 × 3555	1500 × 4485	1750 × 5310
Approx. Weight	290 kg	395 kg	445 kg

NoteCapacity calculated at 750 kg/m³ bulk density. (Material Wheat). Additional models are available in various capacity ranges.

Technical Specifications

Capacity10-15 TPH

Power10-15 HP

Motor Speed1500 RPM
