De-Stoner

UTILIZATION

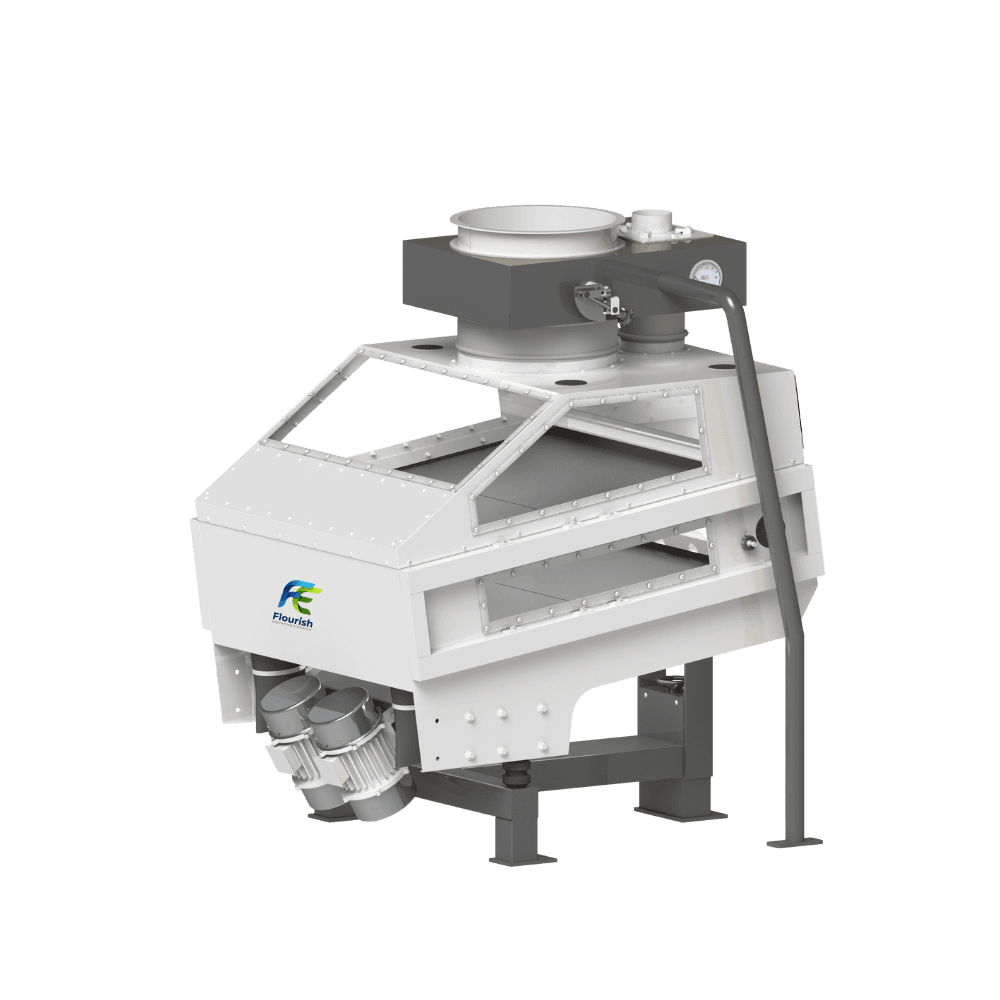

Flourish Engineering & Solutions introduces the De-Stoner, designed for a wide range of food processing applications including bulk material classification, cleaning, grading, and effective removal of high-density impurities such as stones, glass, and metal particles. The De-Stoner ensures superior product purity and is ideal for use in grain, pulse, and seed processing plants.

OPERATION

The De-Stoner operates using a vibrating screen combined with a controlled airflow system. • The stock material is fed from the top • A vibrating motor drives the screen for efficient separation • Air is blown from the bottom to stratify material based on density Lightweight particles move towards the upper deck and are discharged through the outlet, while heavy impurities settle and exit through the bottom, ensuring precise separation and minimal product loss.

FEATURES

  • Heavy-duty built-in design
  • Adjustable sieve
  • High capacity with consistent output

TECHNICAL DATA

Model No.DS 90/120DS 120/120
Capacity (T/H)4 - 56 - 8
Vibration Motor (HP)0.5 + 0.50.5 + 0.5
Dimension (L x W x H)1565 x 1345 x 14451695 x 1440 x 1930
Approx. Weight435 kg520 kg
Sieve Size (mm)900 / 12201220 / 1220

NoteCapacity calculated at 750 kg/m³ bulk density. (Material Wheat). Additional models are available in various capacity ranges.

Technical Specifications

Capacity4-8 T/H
Power0.5+0.5 HP
MaterialMild Steel/SS
